The iCUE Link H150i LCD kit
In terms of packaging, we find something similar to the kit tested previously. The product arrives in a black and yellow box with an illustration of the kit on the front. Once again, a reminder of its functions/features can be found on the back and sides.
Inside, it’s the classic cardboard mold in charge of protecting all this little world. Once again, recycled plastic makes an appearance in the form of a bag enveloping theAIO’s various components. This time, there are no screws and bolts to wander around like last time.

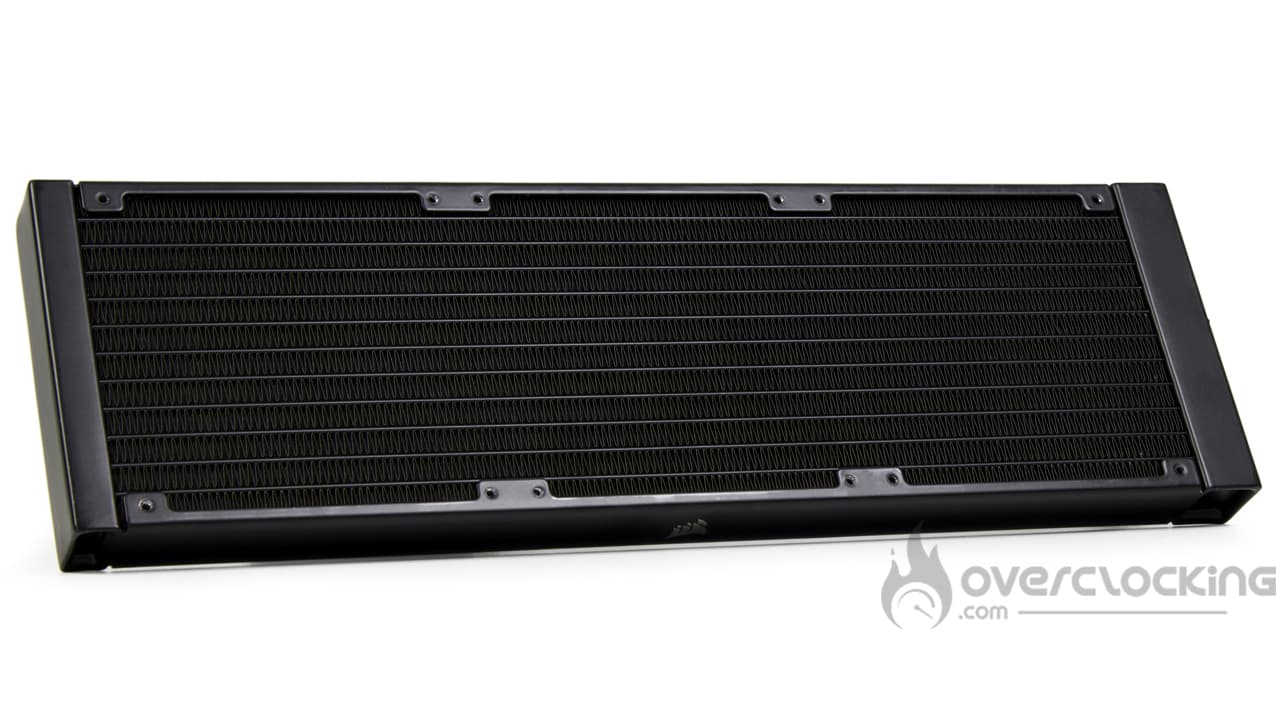

Radiator:
After reviewing the H170i RGB, the radiator on this 360 mm version looks tiny to us, but it’s not. Just a “bigger” habit. This translates into dimensions of 397 (W) x 120 (D) x 27 (H) mm. Here, the height is a standard 27 mm. Gone are the big radiators like the Arctic Liquid Freezer II in 38 mm.
Once again, there’s an imposing block between the tubes. This is the block to which the kit will be connected. It features two proprietary connectors linked to the iCUE Link system, plus a USB type C connector. The latter will be useful for connecting and powering the pump’s LCD screen.
Once again, the radiator is beautifully finished. The radiator features a neatly applied black paint finish. On the sides, unlike what NZXT can offer, there are no visible rivets or screws. Only the brand logo is present.
To connect the radiator to the pump, two 45 cm long tubes are used. These feature a nylon sheath for finishing, which is of the same type as that of the H170i. If it appears looser than on previous series, it’s because it’s also used to conceal cables, rather like Arctic’s Liquid Freezer II.
Pump block:
In itself, the design of the pump on this iCUE Link H150i LCD changes very little from the RGB version. The design is very similar, with translucent plastic tinted black. In the center, there’s no logo, no, here we’re dealing with an LCD screen.
Speaking of screens, Corsair offers us an IPS LCD model. With a diagonal of 2.1″, it displays in 480×480, all at 30 Hz. Brightness is good, at 600 cd/m², while colors are displayed in 24-bit. And having tried it out, it’s clear that the display stands out, it’s easy to read and the viewing angles are open. You don’t have to be right in front of it to see what’s on the screen!
Once again, the block is 75 mm square and XX mm high. The iCUE Link H150i LCD pump also benefits from a slightly eccentric base so as not to clutter the memory. This base measures 56 x 56 mm, ideal for covering theIHS of any CPU currently on the market.
Once again, the 90° end caps on the side of the pump are particularly neat. They are finished in black chrome, while the pump’s cables are concealed. Yes, there’s no cable at the block outlet!
Finally, under the copper base, we can see the thermal paste pre-applied in the form of a triangle. The copper base, meanwhile, is screwed to the rest of the carcass via 8 Phillips-head screws!
Compatibility :
In terms of compatible platforms, Corsair highlights support for :
- Intel: LGA-115x – LGA-1200 – LGA-1700 – LGA-2000
- AMD: AM5 – AM4
Compared with its H170i RGB counterpart, this iCUE Link H150i LCD loses compatibility with AMD’s HEDT platform. It has to be said that this socket imposes very specific constraints in terms of pump size and dissipation capacity. Clearly, this heatsink doesn’t seem to fit.
Fans :
In terms of ventilation, once again we find mills from the QX RGB series. This time, they come in 120 mm and feature a design very similar to those in 140 mm. The frame is square and features rubber silentblocks to dampen vibrations. Luminous double edgings are present on the edges, while the inside features a luminous ring.
Once again, with so many LEDs (x34), this makes for a particularly thick frame, leading to shortened blades. The blades, of which there are seven, have a rather thick, curved profile. They are translucent, white in color, the aim being to maximize the diffusion of RGB lighting.
Connection is via the frame, using a connector bridge system. Opposite this, a wedge is present to ensure that the fans stay firmly in place. They are also magnetic to simplify positioning.
As for specifications, the brand announces fans with a particularly high speed range: from 480 rpm to 2400 rpm. At full fan speed, airflow is 63.1 CFM, while static pressure rises to 3.8 mmH2O.

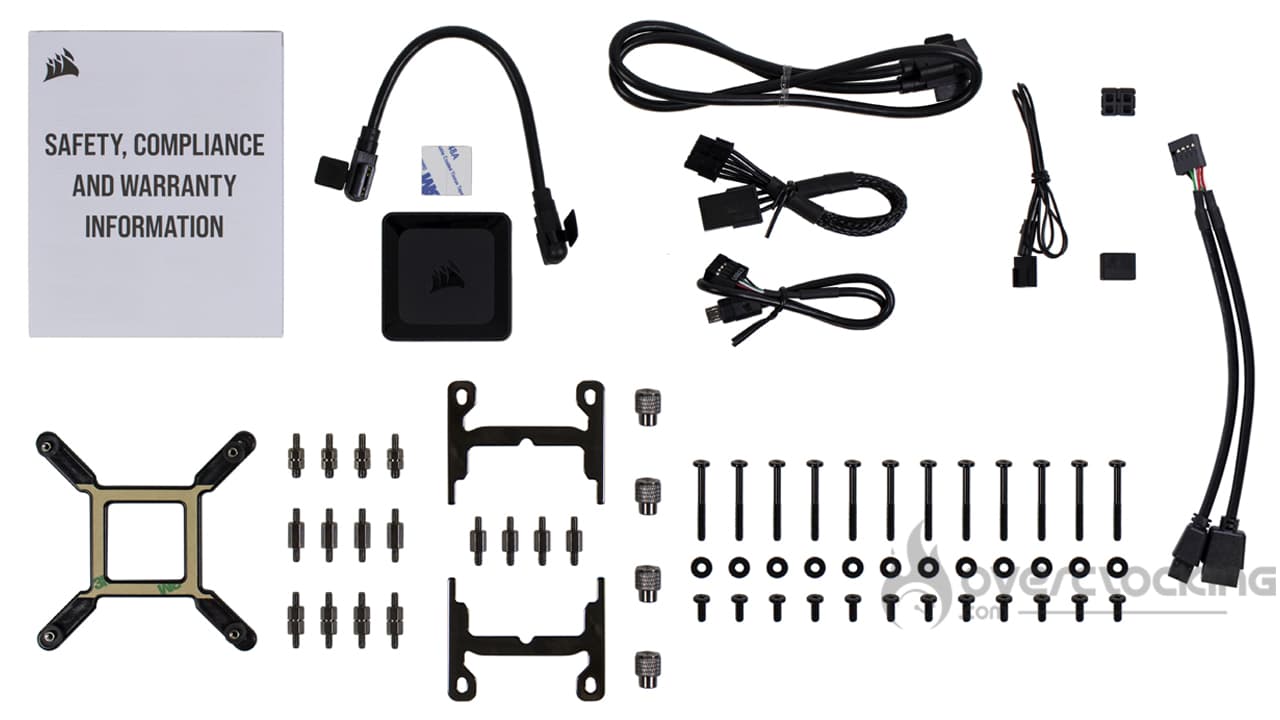

The bundle:
The accessory part arrives in various small plastic bags containing :
- A warranty guide
- A cable to connect the fans to the radiator
- ICUE Link hub
- A second cable to connect the radiator to the iCUE Link hub
- 6-pin PCIe power cord for the hub
- USB cable for connecting hub to motherboard
- Tachometer cable
- Connector bridge and shim (for fans)
- Metal backplate and screws for Intel sockets
- Mounting arms and spacers for socket AM4/5
- Fans/radiators screws and washers
- USB 2.0 dual header splitter
Once again, we find an accessory section offering everything you need to assemble the kit. This time, the splitter for a dual header 2.0 is supplied, as you’ll need to connect the screen to your motherboard in addition to the hub to benefit from all the kit’s features.
Roughly speaking:
Basically, this is a watercooling kit that presents itself very well, with an attractive design and good finish. In itself, there’s very little change from the RGB version, apart from the presence of an LCD display on top of the pump. Now, to find out how to install it, go to the next page!
