Review: Corsair H170i Elite LCD

0

The H170i Elite LCD XT

Unpacking:

The packaging of this kit remains faithful to those of Corsair with black and yellow colors. If on the front we have an illustration of the AIO with a reminder of the reference, on the back, we have a reminder of the detailed characteristics.

Inside, we find the usual cardboard protections. Also each element is packed in plastic bags. In short, protections that have proven themselves over time.

The radiator :

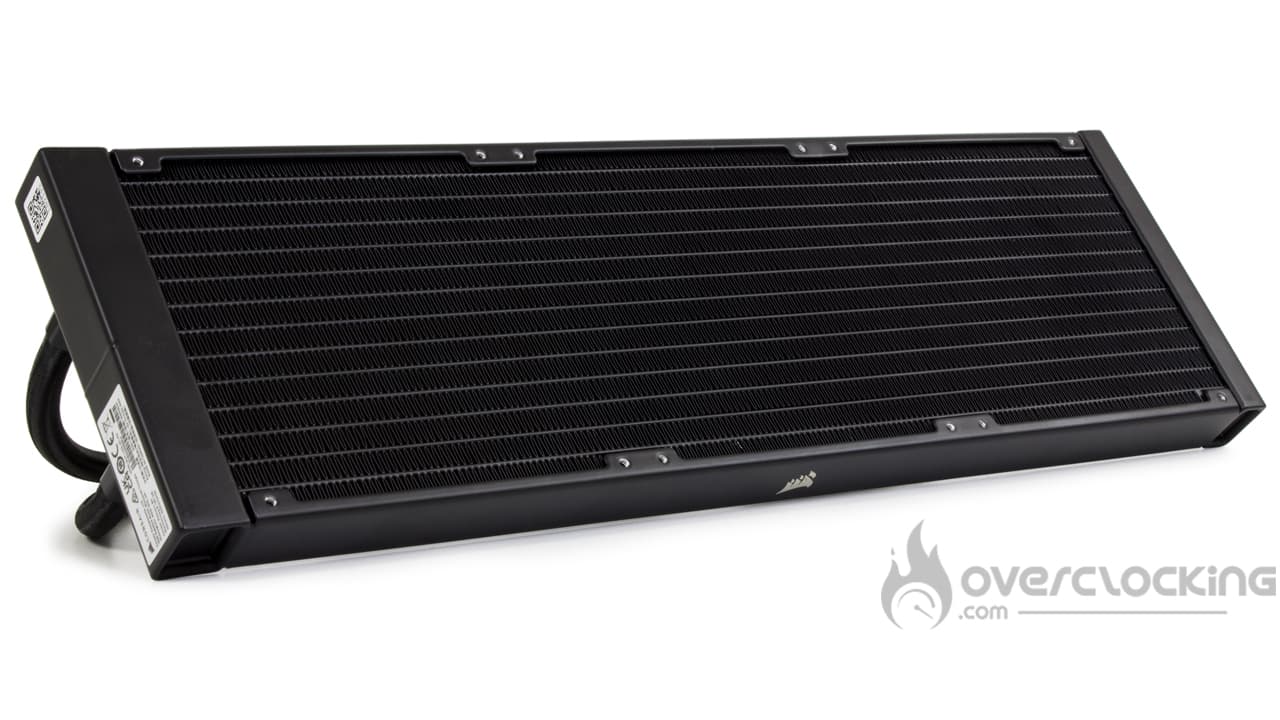

Corsair H170i Elite LCD XT radiateurWe now move on to the radiator part of this H170i Elite LCD XT which, out of its format in 3x 140 mm remains quite classic. Indeed, the manufacturer in aluminum and the thickness is 27 mm. Regarding the number of channels, we are at 13, as for the former H170i Elite Capellix. Finally, there is also no change in dimensions at this level since we find a total length of 457 mm and a width of 140 mm.

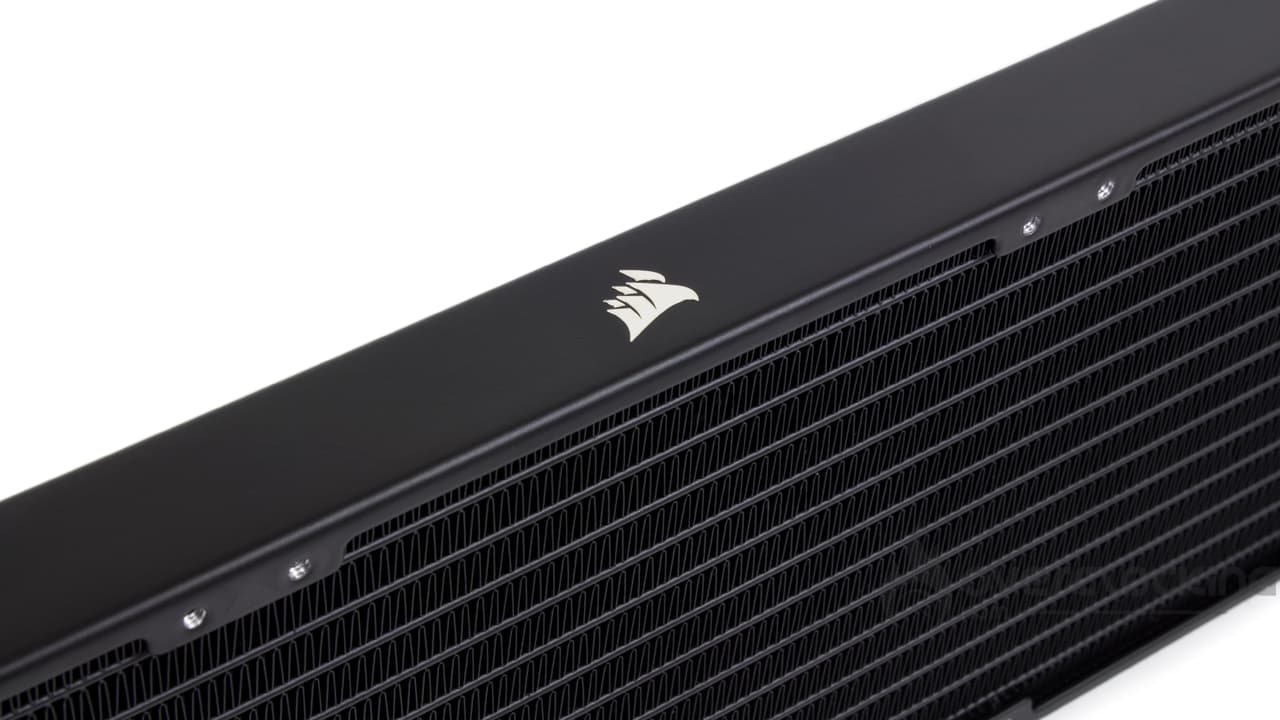

In addition, the finish does not change since the block remains square, without visible screws. It is also painted in black with a paint applied correctly. It will not leave a gray area at the level of the fins. Finally, we have, on the sides, a small bright Corsair logo in gray.

Finally, the only real drawback to this radiator is the dimensions of the radiator. 457 mm, clearly, you need a case that can accommodate such a monster.

AIO Corsair

To connect the pump and the radiator, we find two tubes of 45 cm in length. Regarding the finish, R.A.S since we find a nice nylon sheath very soft to the touch. In addition, the pipes remain very flexible, so that you can make tight curves without forcing, which is very practical for the assembly.

The waterblock:

We now move on to the pump which offers us a square shape with rounded edges. The construction is made of plastic with a shell with a low granulometry. On the top, is present one essential point of this kit: the screen. For this XT version, the brand opts for a 2.1″ IPS screen with a resolution of 480×480 pixels. Similarly, the lighting will be rather bright with its 600 cd/m². Finally, we can distinguish the presence of an internal translucent ring through which will be diffused an aRGB lighting.

As for the dimensions, we have tried to find them, but they are not present on the box or on the website of the brand. For the blow, we take out our good old Ikea tape measure which will give us exactly approximate measurements. Thus, we get dimensions of 72 mm on a side for a height of 55 mm.

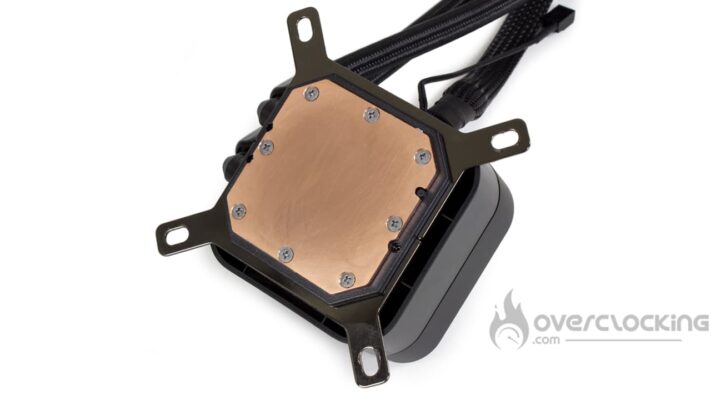

Underneath, we have our copper base which will be in contact with our processor. This base measures 56 mm on each side and will cover the IHS of the AM5 and LGA-1700 CPUs. For the AMD sTR(X)4, if a big part of the processor should be covered, the whole will not be. Finally, it will be held in place by eight Phillips screws.

Corsair H170i Elite LCD XT pompe

On the connectivity side, there’s a lot to talk about since starting from the pump we have two connectors, one big, flat, 22-pin and a second one of USB 2.0 type. Finally, we have a third, non-PWM fan type with a single cable pin to retrieve the pump speed.

Compatibility:

With the H170i Elite LCD XT, Corsair provides exemplary compatibility as the vast majority of recent platforms are compatible:

  • Intel: LGA-1100 – LGA-1200 – LGA-1366 – LGA-1700 – LGA-2000
  • AMD: AM5 – AM4 – AM3 – sTR(X)4

With its kit, the brand is confident enough in its performance to offer support for the AMD HEDT platform. At the same time, a 420 mm radiator, it can be understood!

Fans:

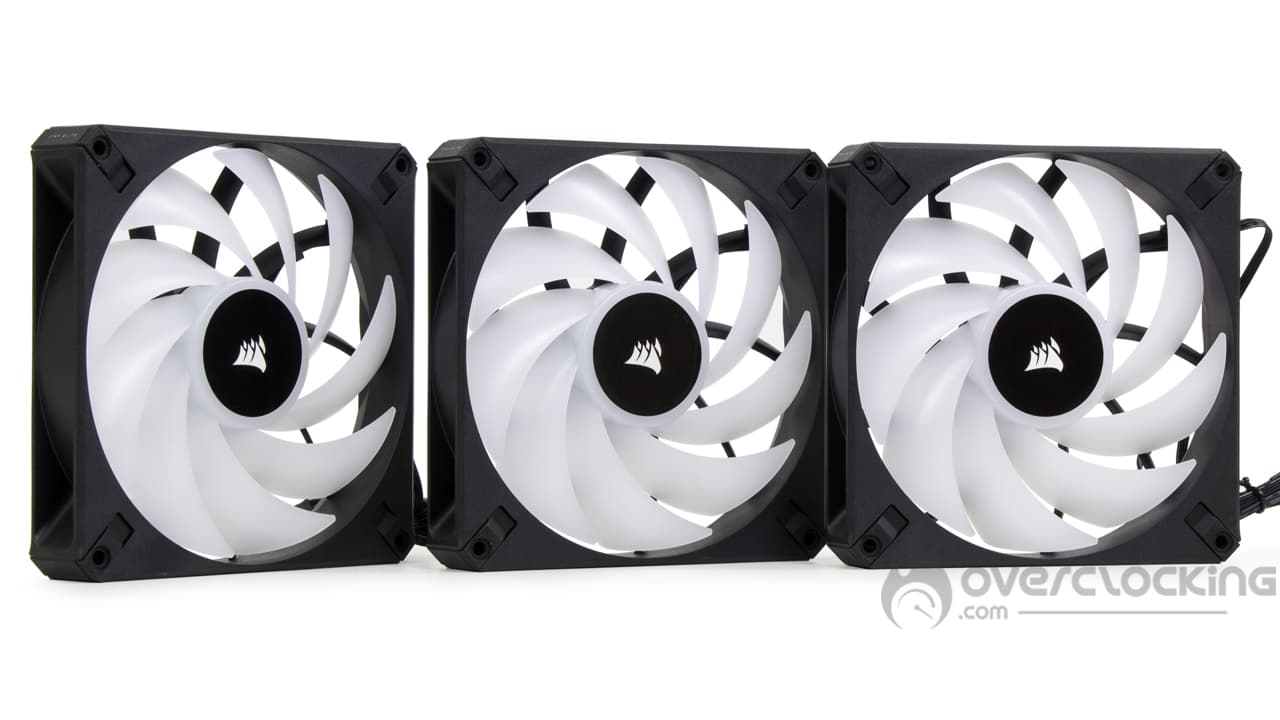

Finally, the biggest change Corsair has made is in the ventilation. Unlike its Elite Capellix counterpart, this time we get three 140mm AF RGB Elite fans.

These feature a smooth frame with four rubber silentblocks to reduce stray vibrations. In addition, the mills offer nine long, rather curved and thin blades. They are white and translucent to maximize the diffusion of aRGB lighting.

Corsair H170i Elite LCD XT ventilateurs

Besides, we find a double RGB connector with a proprietary connector and PWM with a universal connector. While the first will be used for color management, the second will be used to manage the operating speed.

Now, what interests us is the performance. At this level, the brand announces speeds between 500 rpm and 1700 rpm. At full speed, the air flow will reach 89 CFM while the static pressure will rise to 2.00 mmH2O.

The bundle:

Corsair H170i Elite LCD XT

As for the accessories, we find something complete since the brand offers :

  • A warranty guide.
  • An Intel steel backplate.
  • The screws and bolts necessary for mounting as well as the AMD mounting arms.
  • ICUE Commander Core controller for up to six fans.
  • AUSB splitter to connect the AIO pump and controller to your motherboard.
  • Two 3M adhesive patches to place the Commander Core in your case.
  • The screws for mounting the fans and the radiator.

With its H170i Elite LCD XT, Corsair offers us everything we need to mount its AIO. In addition, we find what to connect while limiting the impact on the connectivity with the USB splitter. The same goes for the screws for the fans, which are present in sufficient number to attach a whole battery of additional fans on the radiator.

Roughly speaking:

With its kit, Corsair seems to offer us a convincing reference with a good level of finishing. The integration of the screen seems to us neat, of course, to see once under tension what it gives. For the moment, it looks promising, we’ll just have to see what happens next of course.
