Back in China where we will talk about the motherboard manufacturer Onda. The brand offers its B760Plus, a micro-ATX model that does not look like much… Especially since the card has two memory slots in DDR4.

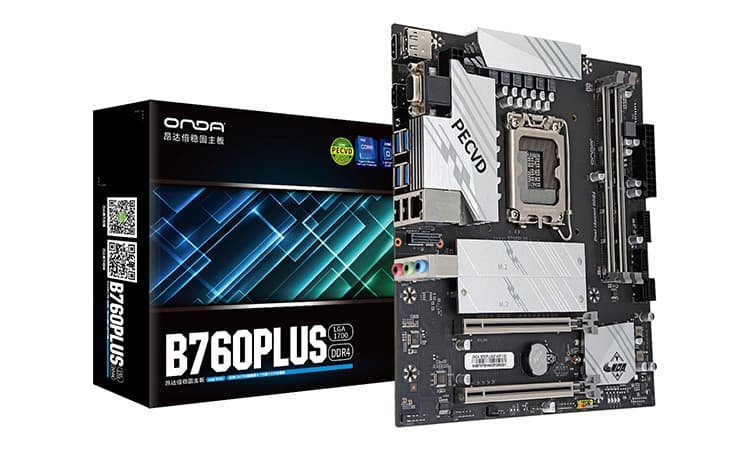

B760Plus: a small Onda motherboard!
With its small card, the brand offers a micro-ATX model equipped with a LGA-1700 socket and a B760 chipset. The card is therefore designed to accommodate Core i 12th and 13th generation. Moreover, for the power supply, we find a small 4-pin EPS12V CPU connector as well as 10+2 power supply phases with Dr.Mos.
The connectivity is quite simple since there are only two memory slots in DDR4. They will be able to hold up to 64 GB of RAM clocked at a maximum of 3600 MT/s. Otherwise, the PCIe part puts forward two connectors to the 4.0 standard. And for storage, there are two M.2 in PCIe 4.0 with heat shield and three SATA III. In short, a board intended for the new Intel CPUs without any real novelty.
At the back, the connectivity is also very uncluttered with a double HDMI output, a DisplayPort and a VGA. With this, we have six USB-A of which two are 2.0, the other four are 3.0. Finally, for the network, we have an Ethernet in 2.5 Gbps as well as audio jacks.
For the price, it will be necessary to count a hundred euros via JD.com.
Here is the technical data sheet of Onda!
