Direction DeepCool and the heat sink sector. The Asian brand has announced its AN600, a compact heatsink in top-flow format. Clearly, this model is designed for ITX configurations, given its size!
AN600: a compact top-flow heatsink!

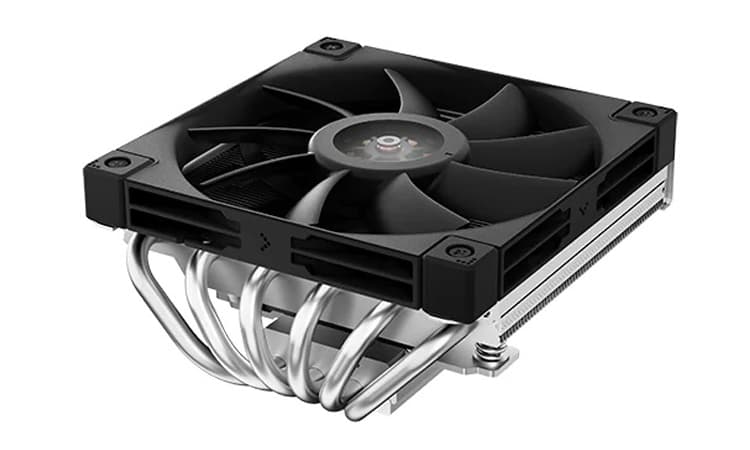

This heatsink is a classic ” top flow ” model. It features C-shaped copper heat pipes running through a stack of aluminum fins positioned above the processor. The result is a very compact cooling unit, with dimensions of 122 (W) x 120 (D) x 67 (H) mm. Weight is also kept to a minimum, with 628g on the scales.
As we said, the heatpipes are made of 6 mm copper. There are six of them, and they meet at the nickel-plated copper base.
Ventilation is provided by a single slim 120 mm fan. In fact, this fan is only 15 mm thick. The fan will run from 500 rpm to 1850 rpm. At full speed, airflow will be 61.56 CFM, while static pressure will be 1.97 mm Aq.
This heatsink will be installed on mainstream sockets, with support for LGA-1700/1200/115X and AMD AM5/AM4 platforms.
Priced at €49.99, this heatsink is not yet on the market.
Here’s the DeepCool datasheet!
