With the Thermaltake SWAFAN EX INFINITY fans, we have a slightly different option for those who want to cool their system while maintaining a clean, bright, and cohesive build.
This isn’t just another RGB fan kit. Here, Thermaltake combines several ideas already seen in some modern modding projects and refines them into a more practical format.

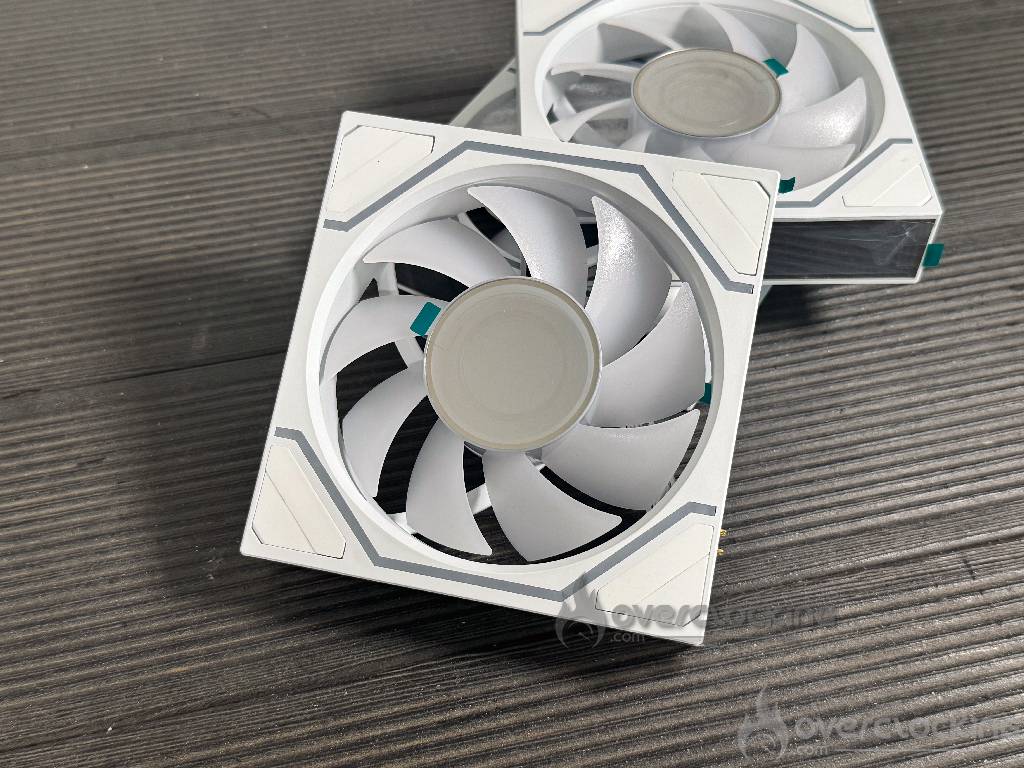

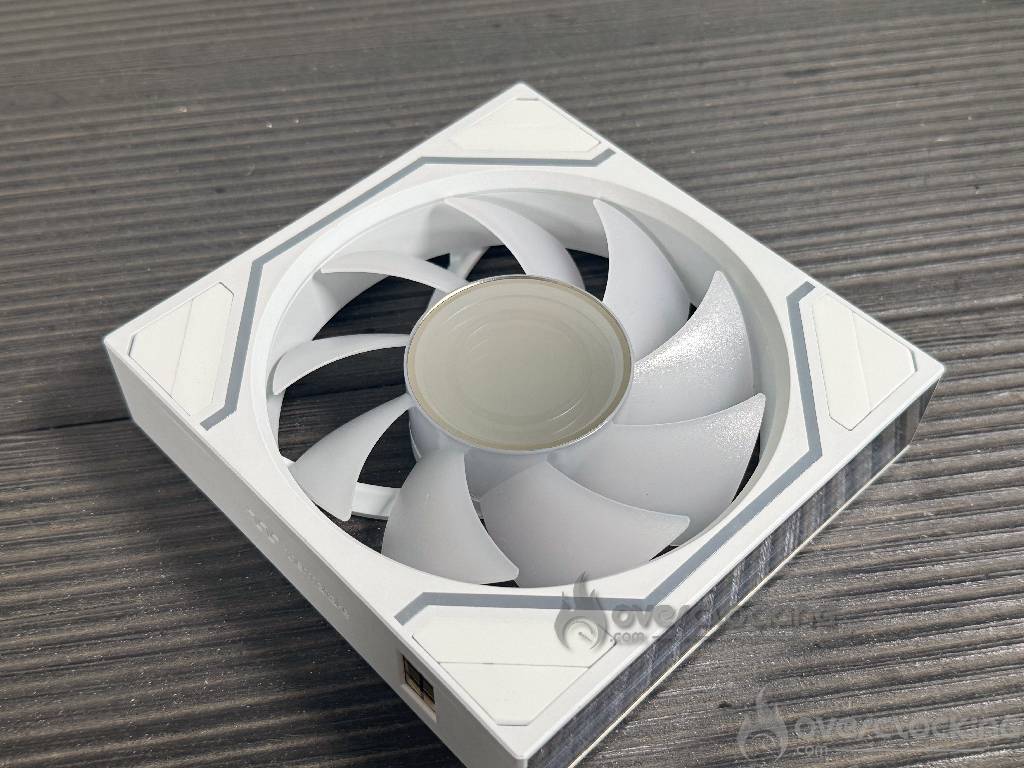

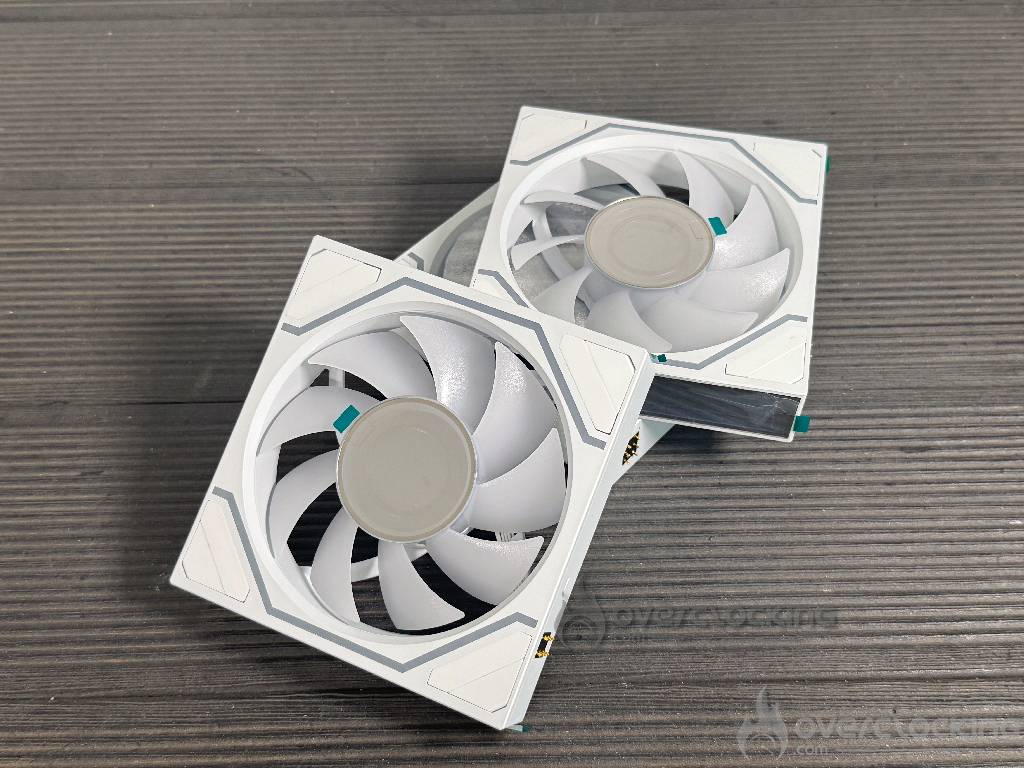

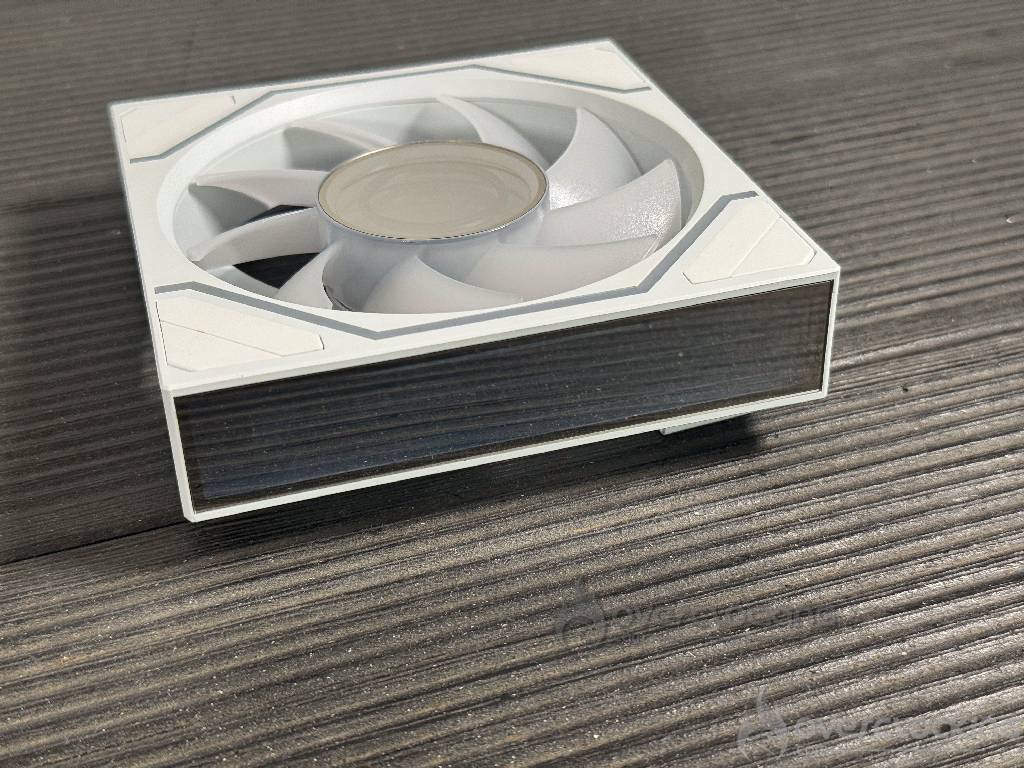

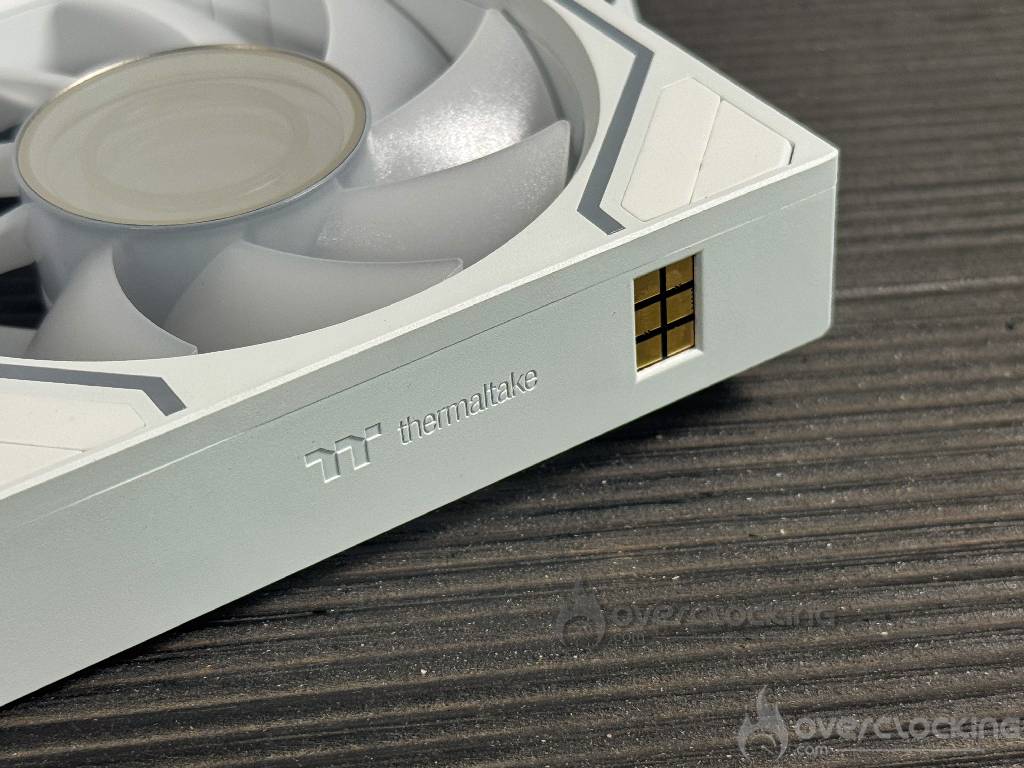

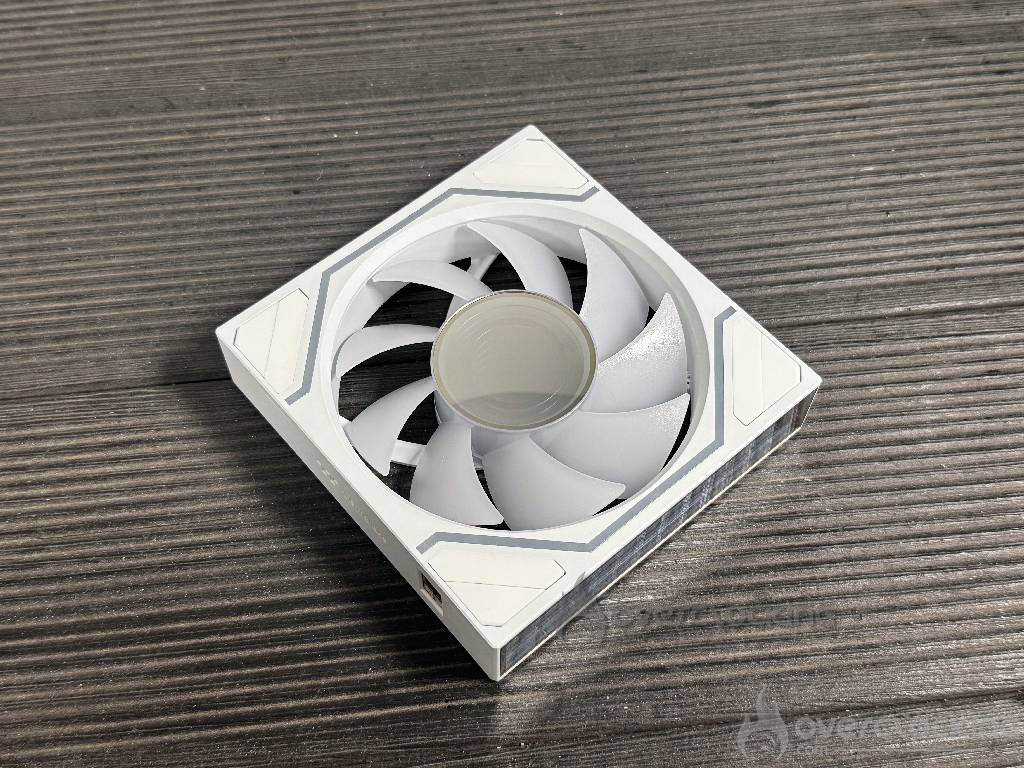

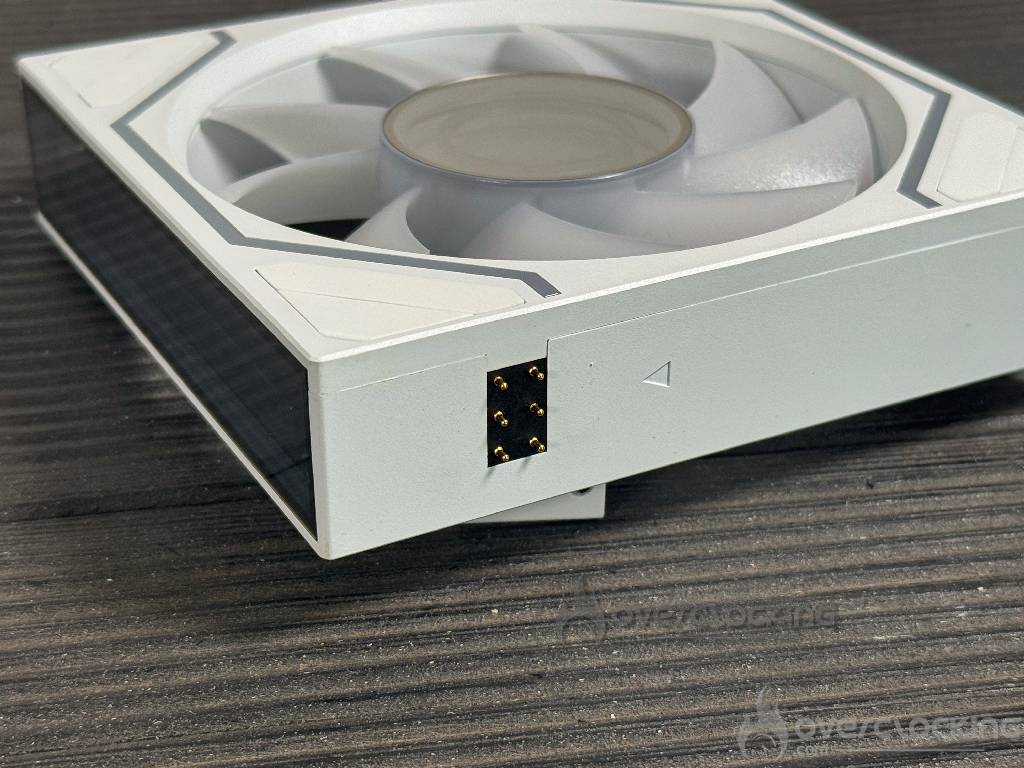

The SWAFAN EX INFINITY features a 28 mm frame, compared to the 25 mm found on many conventional fans. This extra thickness provides rigidity that improves airflow and static pressure, while also creating more space for the Dual Infinity Mirror lighting. This infinite mirror effect is visible at the central hub, as well as on two sides of the frame. The white inner ring remains static, while the outer ARGB ring can be synchronized with software from major motherboard manufacturers. The fan supports 5V ARGB synchronization with ASUS Aura Sync, MSI Mystic Light, Gigabyte RGB Fusion, ASRock Polychrome, and Biostar. In addition, the SWAFAN EX INFINITY uses the MagForce 2.0 system, which relies on magnetic connectors with wider pogo pins. The goal is simple: to reduce cable clutter, facilitate alignment, and simplify the installation of multiple fans in series.

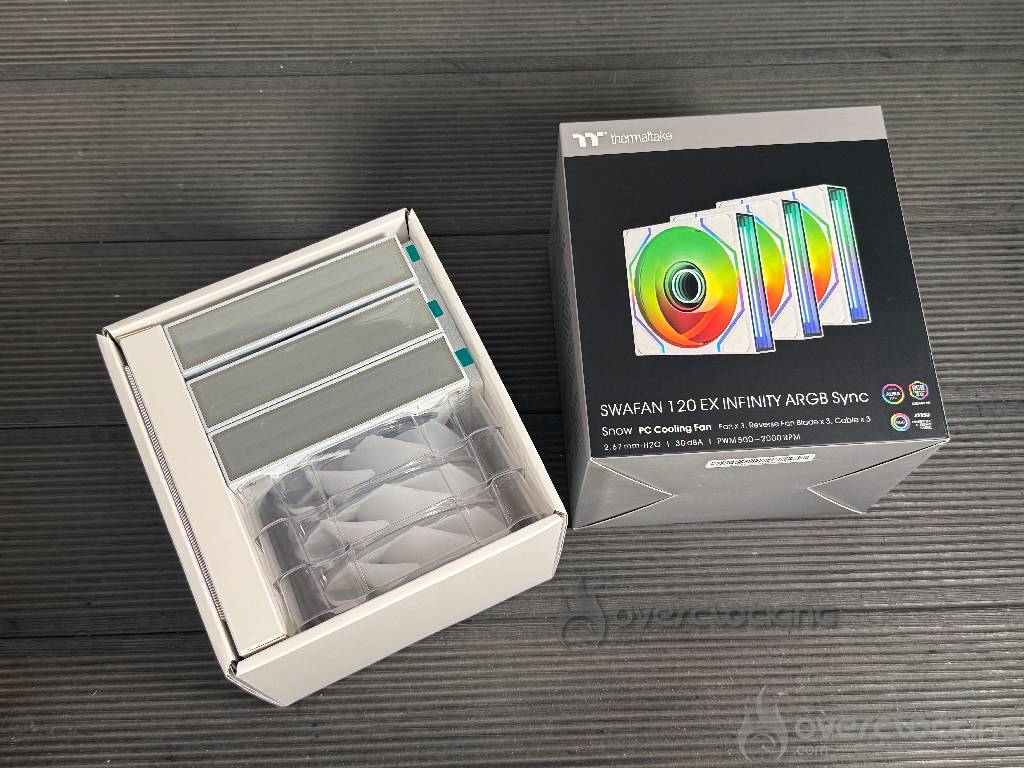

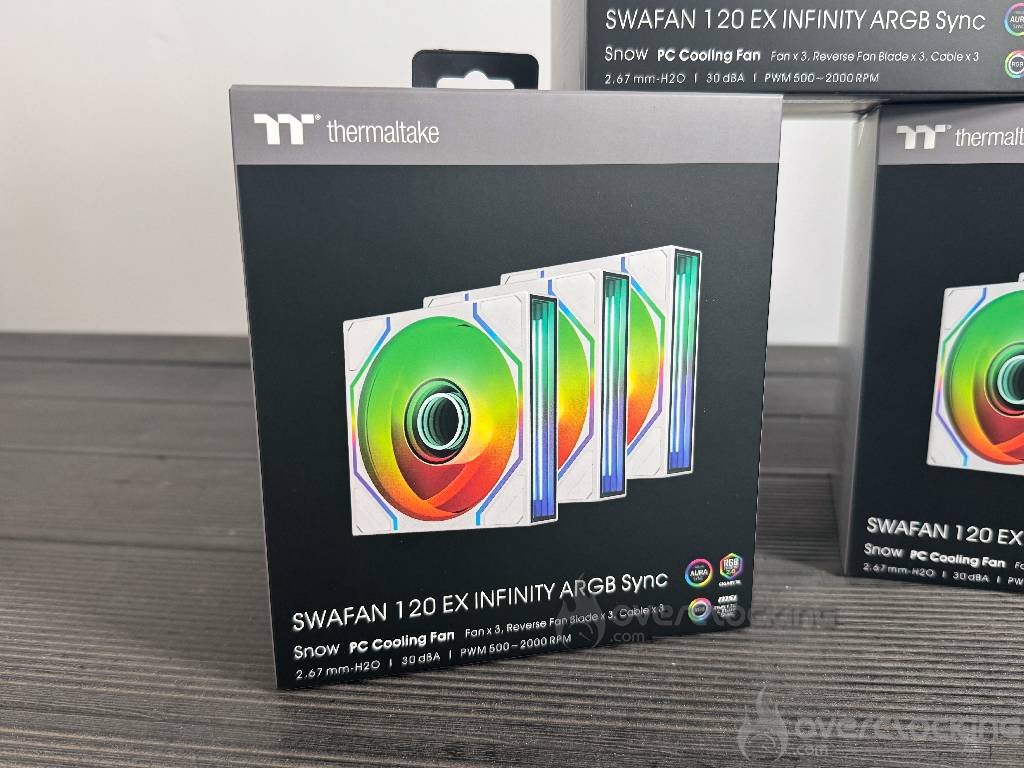

The 120 mm version operates in PWM mode from 500 to 2000 rpm. With the standard blades, it delivers 58.13 CFM, 2.86 mm-H₂O, and 30 dB(A). With the reverse blades, it achieves 56.15 CFM, 2.23 mm-H₂O, and 32 dB(A). This is important because the interchangeable blades allow you to choose between intake or exhaust mode without obscuring the fan’s most aesthetically pleasing part. Price-wise, the three-pack of SWAFAN 120 EX INFINITY is priced at around $99.99 at launch, with prices in France ranging from 85 to 95 euros depending on the retailer. This is therefore not an entry-level fan, but a product designed for high-end setups, AIOs, radiators, and configurations where cable management matters almost as much as CPU temperature.
| Pros | Disadvantages |
|---|---|
| Intricately designed Dual Infinity Mirror finish, visible on the hub and the sides of the frame. | High price compared to more traditional ARGB fans. |

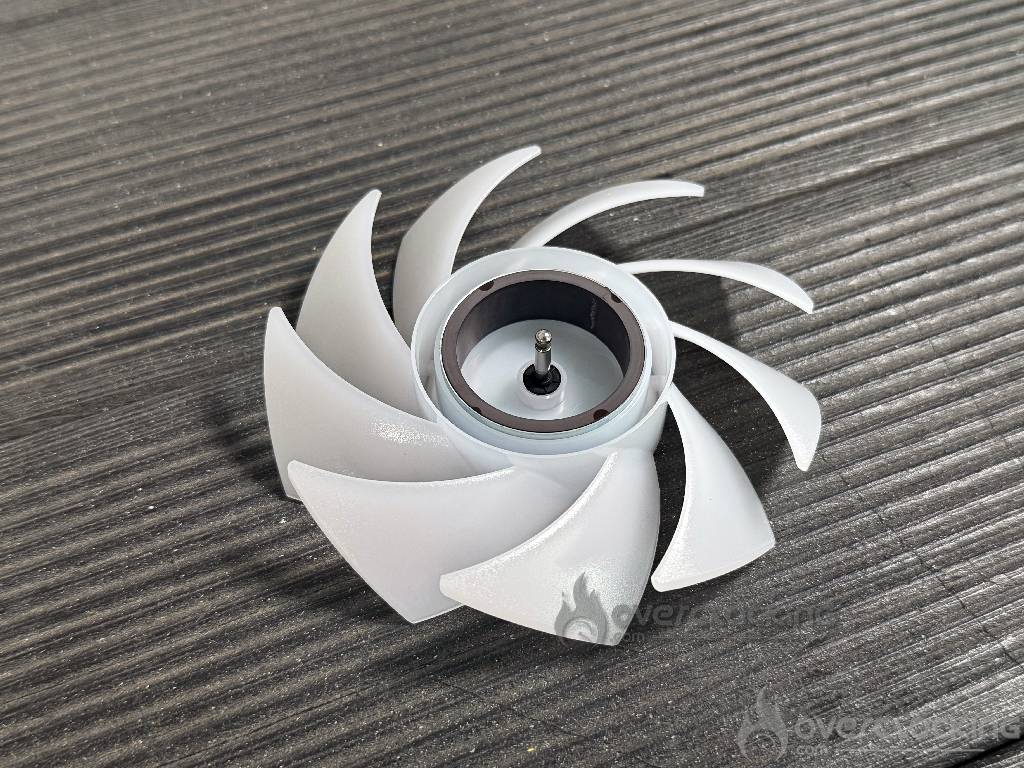

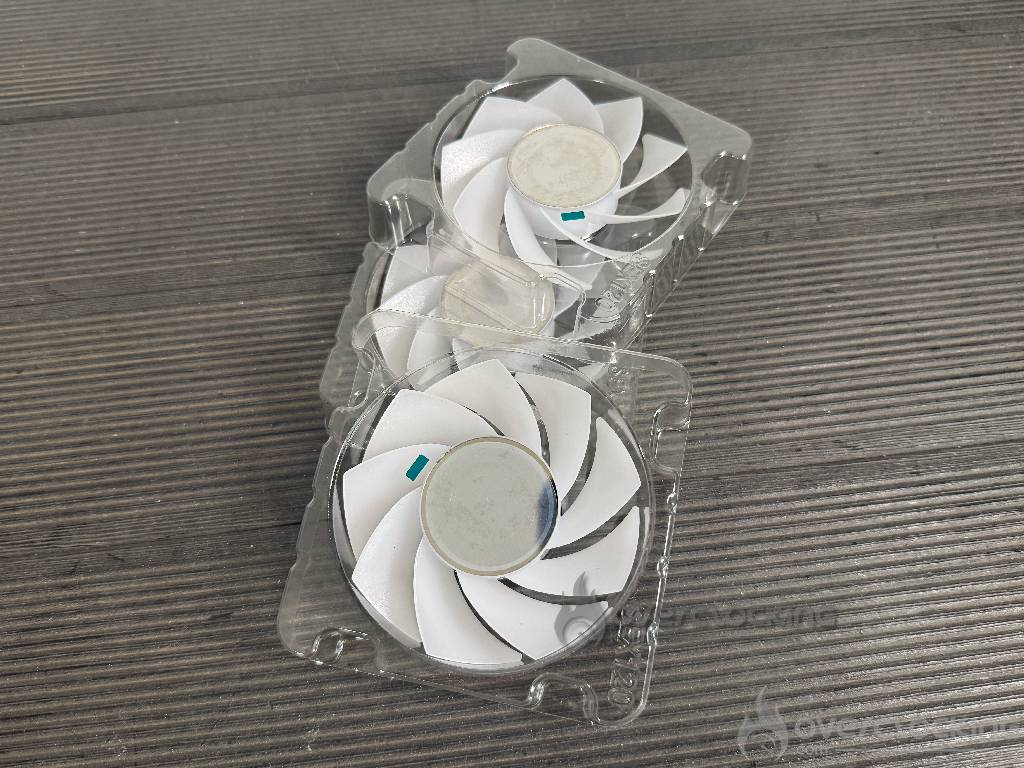

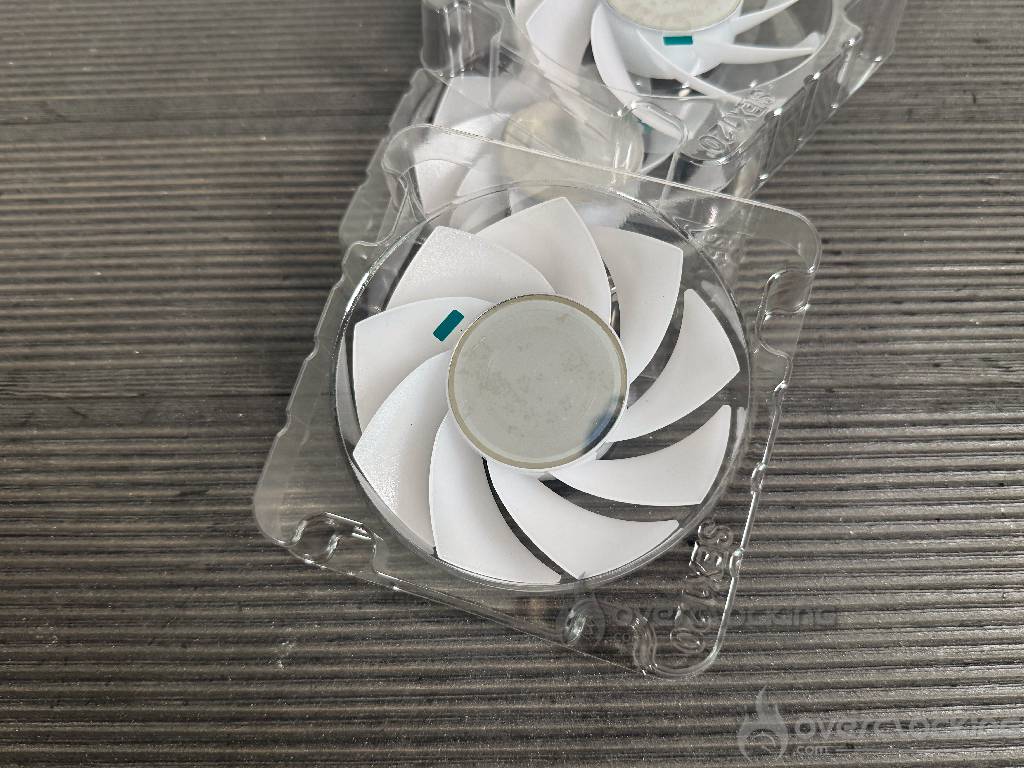

| Interchangeable standard and reverse blades, useful for choosing the direction of airflow without sacrificing aesthetics. | Blades must be handled carefully and with precision. |
| MagForce 2.0 makes daisy-chaining easier and significantly reduces the number of visible cables. | A more specialized ecosystem, less universal than a standard PWM fan. |
| 28 mm frame, which helps improve airflow efficiency. | Check the thickness in certain compact cases or when installed near a very tight radiator. |
| 5V ARGB compatibility with software from major motherboard brands. | The lighting effects will be particularly effective in a glass-sided case. |
| Solid performance for a 120 mm fan, with 2,000 RPM, 58.13 CFM, and 2.86 mm-H₂O using standard blades. | The reverse-blade mode offers slightly lower performance, with 56.15 CFM and 2.23 mm-H₂O. |
| Available in Black and Snow versions, making it easier to integrate into a black or white build. | Noise levels can reach 30 or 32 dB(A), depending on the blade type and speed. |
A quick note: Within the TT lineup, it’s important to distinguish between the SWAFAN EX INFINITY and the CT EX INFINITY. Both series share a similar design philosophy, featuring a 28 mm frame, infinite mirror lighting, hidden screws, and MagForce 2.0. However, the SWAFAN EX INFINITY places particular emphasis on flexibility. Its interchangeable blades allow you to adapt the airflow to your setup while keeping the illuminated surface visible.

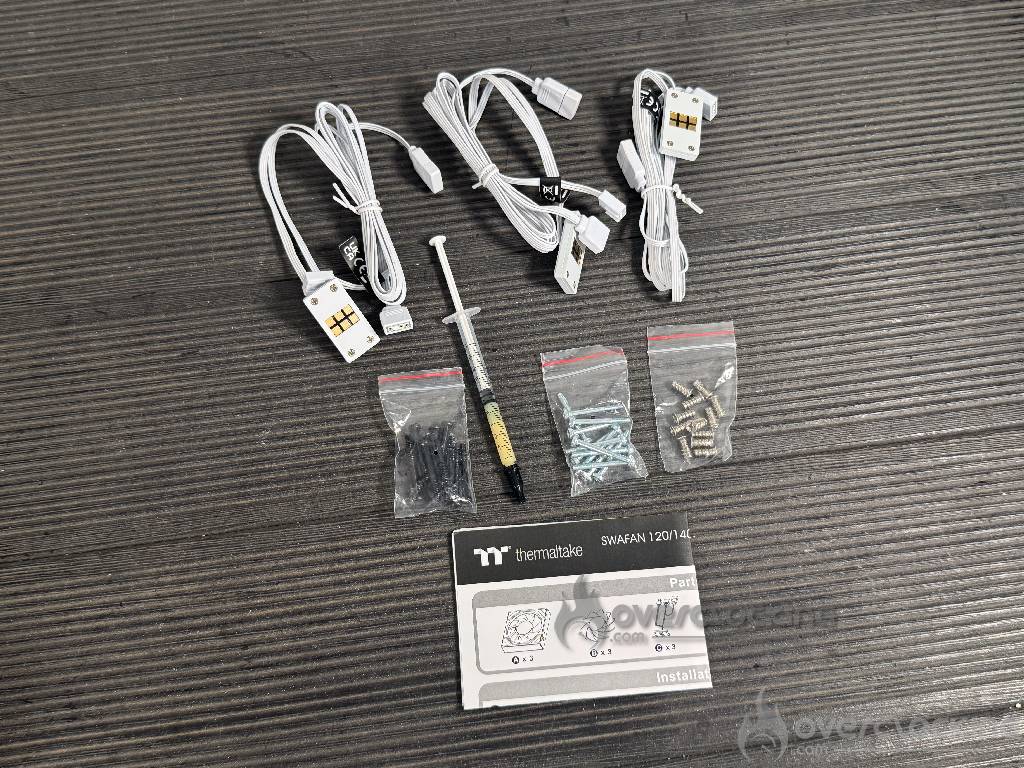

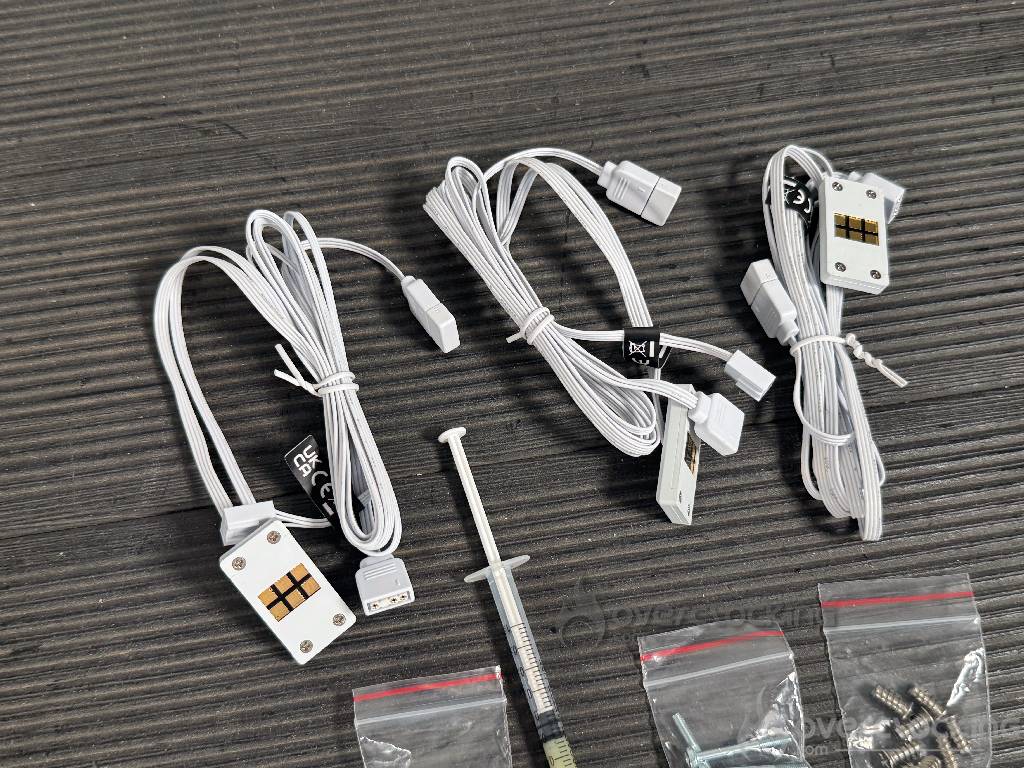

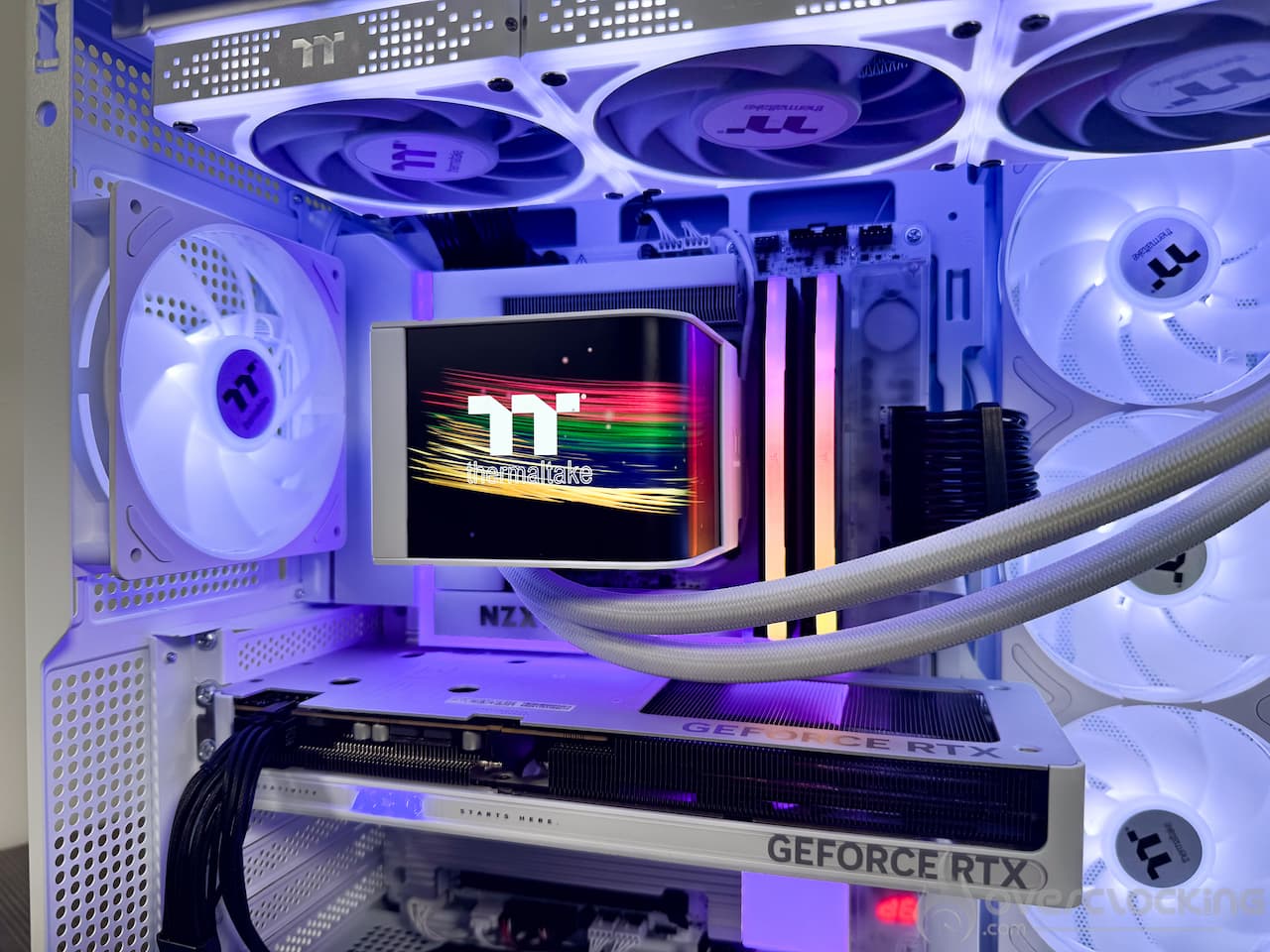

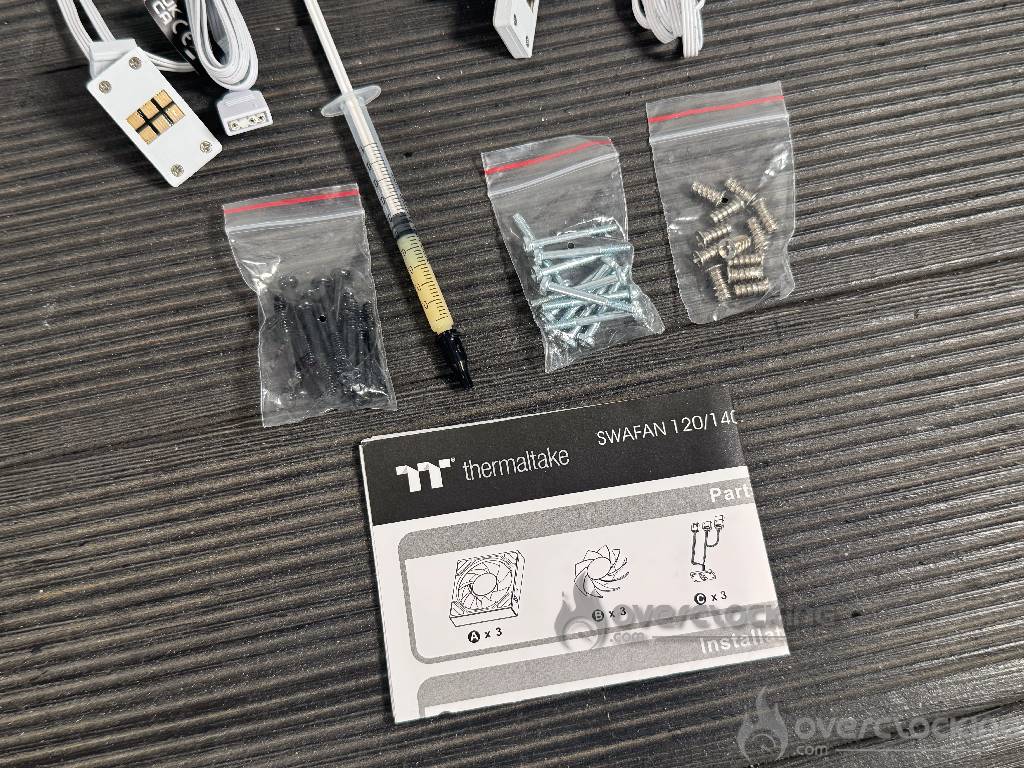

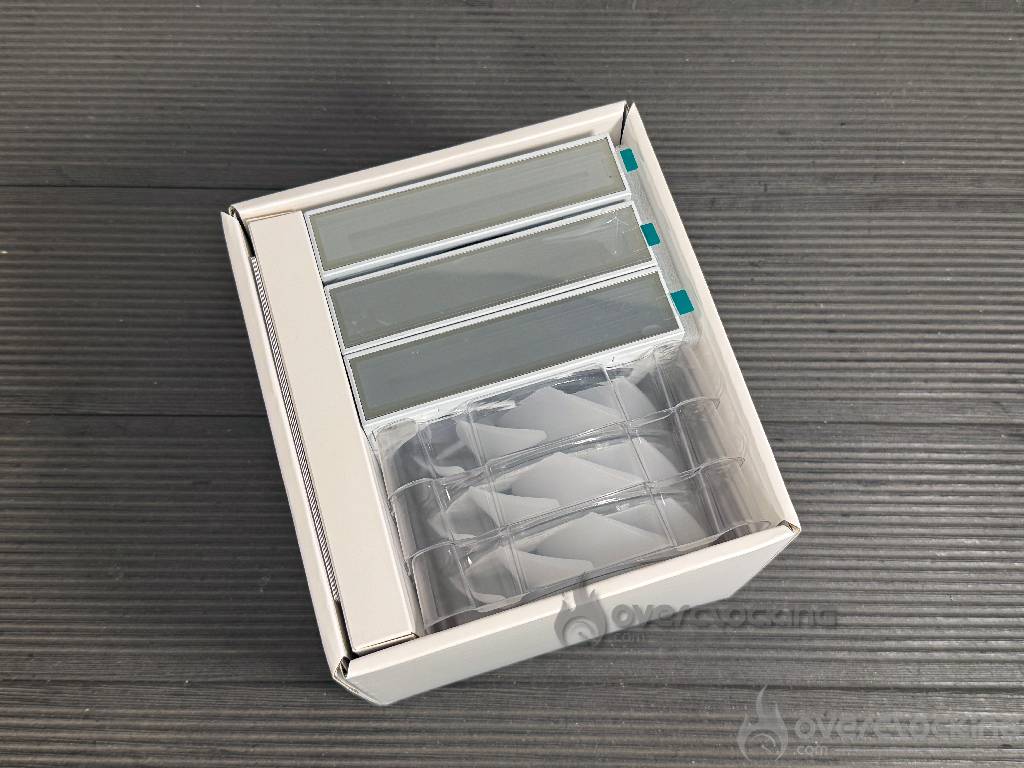

This is very practical in a panoramic case or in a setup with multiple side fans. The CT120 EX INFINITY, on the other hand, is more focused on air pressure and pure performance on the radiator. It delivers up to 68.20 CFM, 3.05 mm-H₂O, and 28 dB(A). In other words, the CT EX INFINITY acts as a reliable, efficient workhorse, while the SWAFAN EX INFINITY functions as a modular fan, with a greater focus on aesthetics and customization. For a dense radiator, a thick AIO, or a setup prioritizing static pressure, the CT may therefore be the more practical choice. For a glass-sided case, a clean build, or a configuration where fans need to blow in multiple directions without compromising the visual appeal, the SWAFAN holds the advantage. Additionally, the MagForce 2.0 system offers real practical value. Fewer cables mean less clutter behind the motherboard tray and fewer cable ties to tighten. Finally, the hidden-screw design provides a cleaner finish. This detail may seem minor, but in a high-end setup, it’s often these small finishing touches that transform a decent build into a showpiece. We’d also like to take this opportunity to detail the bundle included in the 3-pack: it’s incredibly comprehensive.
All in all, these Thermaltake SWAFAN EX INFINITY fans are a great choice for design purists and enthusiasts who love builds that are perfect down to the smallest detail. They’re primarily aimed at users who are putting together a polished, aesthetically-driven build. Clearly, if you’re planning a white, black, or panoramic build, the SWAFAN EX INFINITY fans tick a lot of boxes.

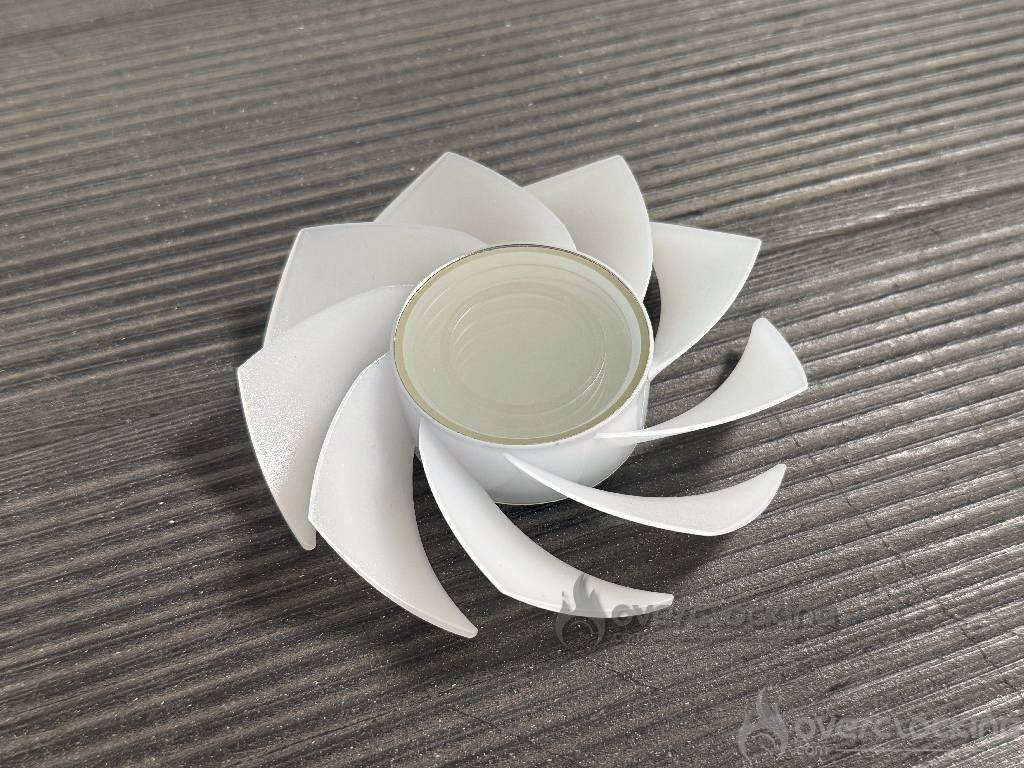

The interchangeable blade system is a real technical selling point. It lets you choose the direction of airflow while keeping the lighting effect on the right side. It’s clever, practical, and much more useful for those who want a sleek build while still prioritizing cooling efficiency. The MagForce 2.0 magnetic mounting system also adds to the product’s appeal, especially for setups with three, six, or nine fans.

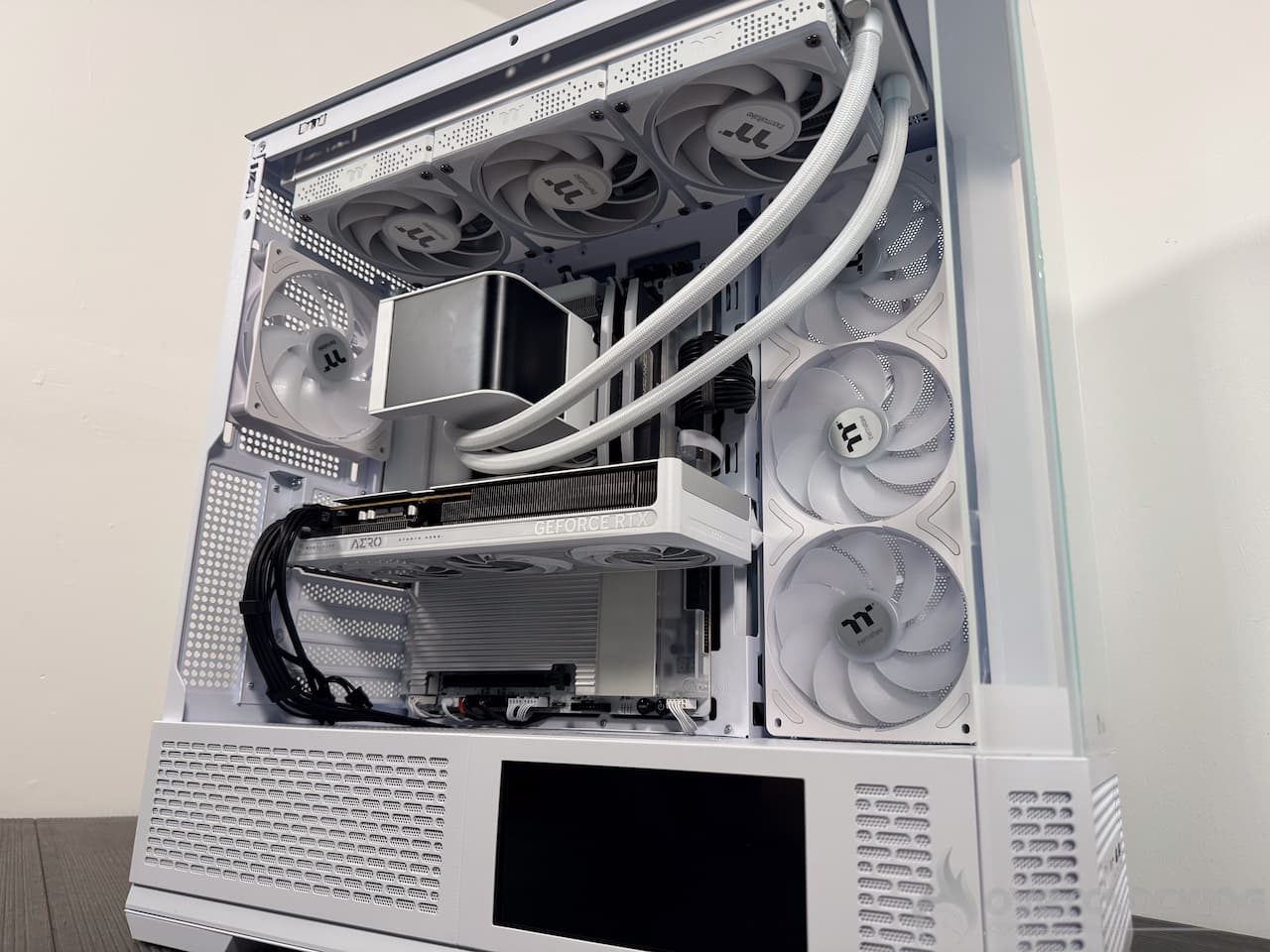

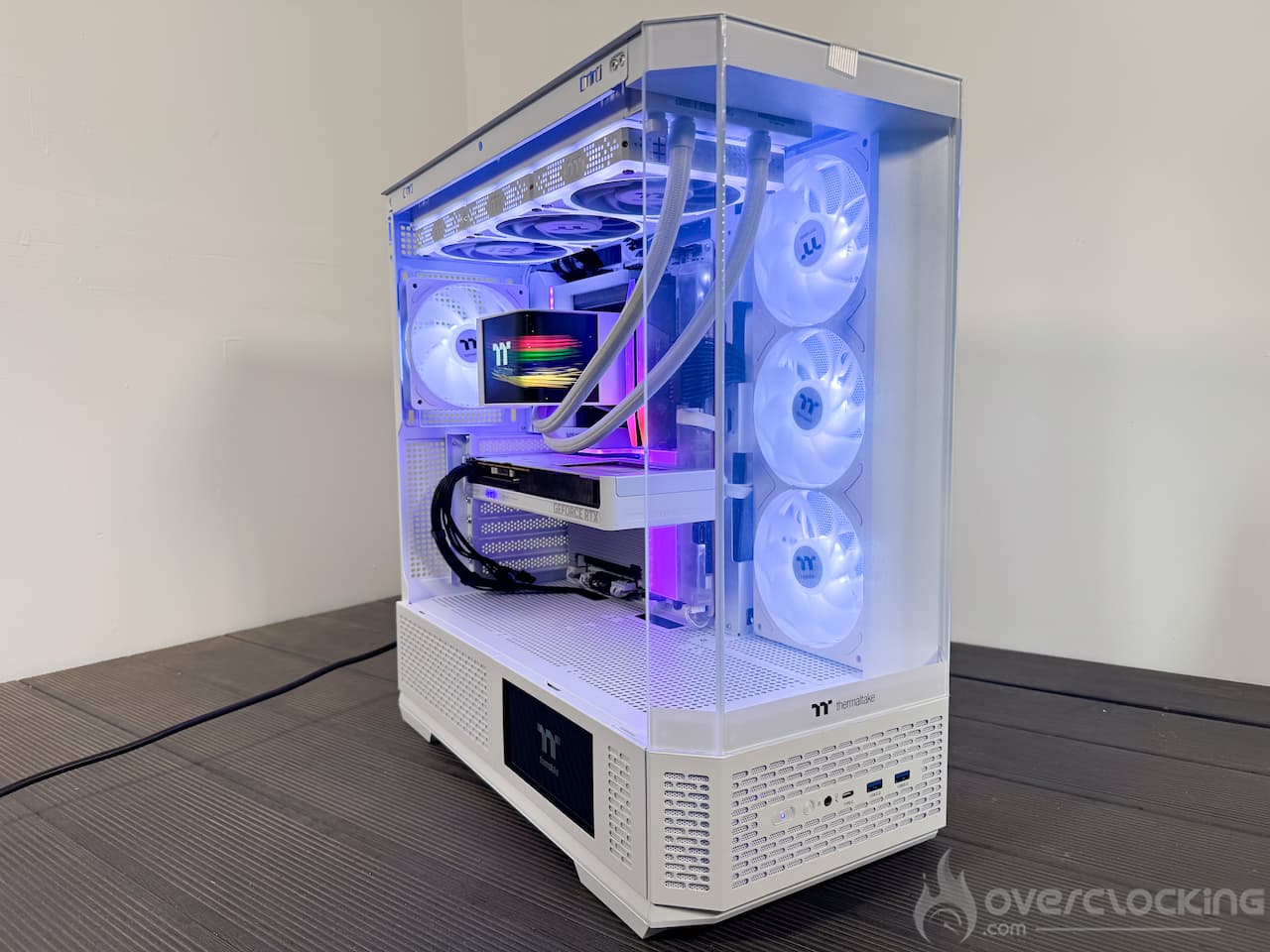

We can therefore only give it a positive recommendation for a high-end PC, a modding project, or a glass-sided setup on your desk. Let’s be honest: the SWAFAN EX INFINITY is attractive, efficient, and modern, but its elegance comes at a price. Ultimately, it’s up to you to decide what your priorities are. You can also get a first glimpse of the final result by checking out our ongoing build featuring the brand’s other products.
