Jiushark offers us a new cooler with its JF13K mini. In principle, it’s a top-flow dual-fan cooler. However, for this mini version, the brand has opted for a pair of 100 mm fans rather than two 120 mm fans like the original version!
JF13K mini: Jiushark’s top flow dual fan is back, but more compact!

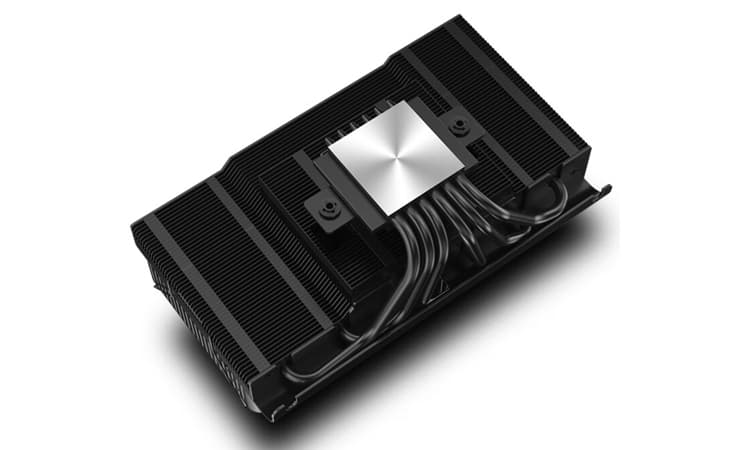

As you can see, this heatsink has a very special format. Instead of a top-flow format with push/pull fans, the latter are positioned side by side. The arrangement is reminiscent of watercooling radiators… But without the pump and hoses. The advantage here is that it cools everything around the motherboard, including RAM and VRM.
In terms of dimensions, this is a rather imposing cooling system. It measures 204 (W) x 101 (D) x 123 (H) mm, and weighs in at 1.2 kg. The radiator is crossed by a total of six heat pipes, which meet at a nickel-plated copper base. As a reminder, the original version had seven heatpipes.
Ventilation is provided by two 100 mm fans. These operate from 800 rpm to 2200 rpm and are capable of generating an airflow of 47.54 CFM and a static pressure of 2.44 mmH2O.
The price is 219.9 yuan, or around €28 ~ €29. Note that the JF13K, the model equipped with two 120 mm fans, can be found on Amazon.fr for around €60, currently on special offer for €53.99.
