Very often, the problem with foreign brands is that when they launch a new product, the price is not known. Here, the brand Jonsbo has just announced the price of four of their fans. By the way, we covered some of them, including the HX6210, HX6250 and HX7280.
Before we talk about cost, let’s do a little reminder to remember what we are dealing with.

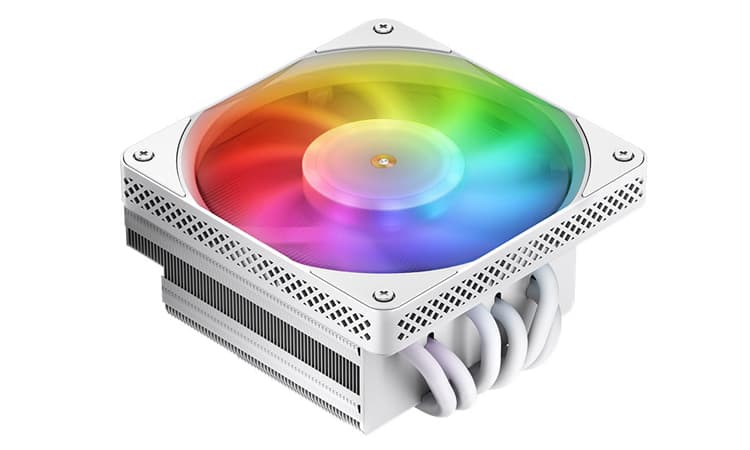

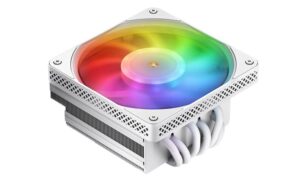

HX6200D: a small top flow
The HX6200D is the heatsink that we missed, nevertheless, we will make up for it. For this model, the brand announces a rather compact top flow heatsink. In terms of size, this translates into 120 (W) x 120 (D) x 63 (H) mm and a weight of 500 gr.
This model is completely white: fins, heatpipes and fan, which is quite a change for a heatsink.
The radiator has a total of six 6 mm copper heatpipes and does not hesitate to put forward large aluminum fins. Finally, all this little world takes advantage of a fan in 120 mm for cooling. Here, it will blow from 700 RPM to 1800 RPM and will generate an air flow of 62 CFM and a static pressure of 2 mmH2O.
HX6210 : a 92 mm with six heatpipes
We go up a size with the HX6210, which now has a tower format, although it is not the most imposing model either. Regarding its dimensions, it measures 92 (W) x 92 (D) x 125 (H) mm and weighs 610 g.
What is surprising with this one is the high concentration of heatpipes considering the size: 6 heatpipes of 6 mm each. Next to that, we have the right to a 92 mm PWM powered fan running from 800 RPM to 2300 RPM. At full speed, it will generate 45.52 CFM of airflow and 2.73 mmH2O of static pressure. It will also be possible to reduce its speed to gain silence.

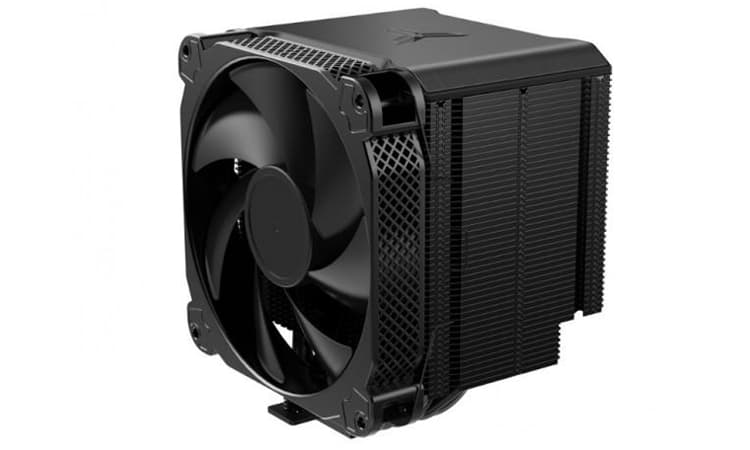

HX6250 : a big heatsink in 140 mm !
With the HX6250 Jonsbo is not kidding anymore by proposing a 140 mm fan. Regarding the dimensions, we go on 144 (W) x 121 (D) x 162 (H) mm and on the weight side, we exceed the kilogram: 1.150 kg.
Again, we find our six copper heat pipes of 6 mm each joining at a copper base. The look is always as neat with a black color.
Regarding the ventilation, we go up a notch with a mill of 140 mm operating by PWM and rotating from 700 RPM to 1800 RPM. At full speed, it generates an airflow of 90.2 CFM and a pressure of 2.74 mmH2O. At the same time, it has to blow to get through this thick heatsink.
HX7820 : a dual tower !
Finally, with the HX7280, you’ll need to have room in your case to fit its 140 (W) x 155 (D) x 160 (H) mm. Moreover, the weight is also increasing since it is now 1.280 kg.
On the other hand, this model now displays two cooling towers and seven copper heat pipes of 6 mm each. Again, they are joined at a nickel-plated copper base.
For the ventilation, it’s a bit special since the brand provides three fans: 2x 140 mm and 1x 120 mm. If the 14 cm have the same specs as the HX6250, the 120 mm will operate from 700 RPM to 1800 RPM, but will generate an airflow of 83.04 CFM and a static pressure of 2.68 mmH2O.
Jonsbo : the prices of these four fans !
We now finish with the sales prices of each model. Here is what we have:
- HX6200D : 54,90 € (FRENCH)
- HX6210: €64.90
- HX6250: €59.90
- HX7280: €94.90
Yes, you read that right, the 92mm is more expensive than the 140mm. Nevertheless, this can possibly be justified if you are looking for something compact and powerful? To be seen.
Here are the specifications of the HX6200D, HX6210, HX6250 and HX7280 from Jonsbo!
